中國獨家專利產品，仿冒必究

CE認證，國內首創,獨家專利產品--自動售冰機.

CE+ROHS

ATENT No:ZL 2008 2 0204221.0

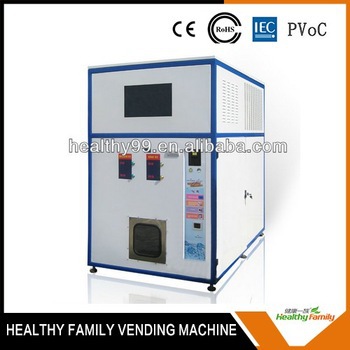

Technical Specifications and Quotation of Commercial Automatic Ice Vending Machine

一、Function Features

u      Fully automatic water purification,ice-making,ice vending and calculation of ice amount and price,really realize the fully automatic vending.

u      Led display screen,online display sum and balance;

u      Make use of leading PC electric controlling system for automatic water filling,water purification,automatic ice-making,automatic machine stopping for full of ice ,and pause vending,falsh light and reject putting in coins when lack of ice ;automatically lock of ice vending door and unlock when consume.

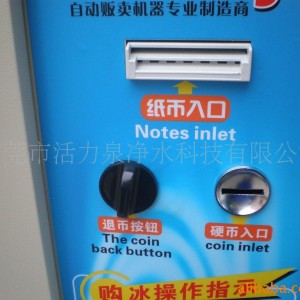

u      Payment methods:coin +bill +ic card

u      Turnover can be checked,independent counting for coin and card

u      High security, security and against the destruction。Body material;2.0mm thickness cold-rolling sheet,surface high-temperature electrostatic spraying. Makes use of food-grade 304 stainless steel for all the ice –contact parts,and the world brand japanese compressor(CE certificate)

u      The conveying device makes use of famous-brand assembly from taiwan to sure the reliable performance. The computation part is thd patent of our factory which is under the protection of intellectual property rights.flexible and adjustable ice amount and unit price setting.

u      Ice-break device is installed inside the ice tank so as to ensure ice vending smoothly; Patent ice-vending structure ensure high efficient and convenient ice vending.

u      Ice tank foamed from 5cm thicknesspolyurethane have good heat preservation function so as to ensure ice cube will stay for a long time without melt.

u      Adopt global advanced American COINCO currency payment system, that is stable and reliable.

u      AdoptGerman SIEMENS/GSM module to realize the machine remote management: automatic message notification when failure; check turnover and running status by message

u      Adopt Taiwan FOTEK photoelectricity switch induction technology to check ice position, automatically stop vending when lack of ice.

u      In auto-packing structure, we adopt German SIEMENS PLC (programmable logic controller)which is imported with original package.And German imported vacuum suction nozzle, stable transmission, can move ice,bag ice, seal bag,dispense rapidly and automatically

u      Adopt American EVERPURE filter to produce sanitary edible ice cube.

u      Ice vending door adopt close and anti-dust door, safe and sanitary. Automatically lock when no consumption, and unlock after flinging coin.

u      Patented design to dispense ice, gitator installed inside,to ensure dispense ice smooth, fast,efficiently.

u      Ice storage bin is made of5 CMthick polyurethan foam,has good thermal insulation property,can stop the ice cube dissolving in a long time

u      GSM global remote management system (optional function)

（1）Auto series

Remarks:There are some additional function for your option:do you need?
